Model No.: PTFE pleated filter cartridge
Min. Order: 25 Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal,Western Union
Transportation: Ocean,Land,Air
Productivity: 100000PCS/Year
Packaging: Carton Packing
Delivery Time: 10-15 Days
Place of Origin: china
Brand: QingFeng,OEM
Supply Ability: 100000PCS/Year

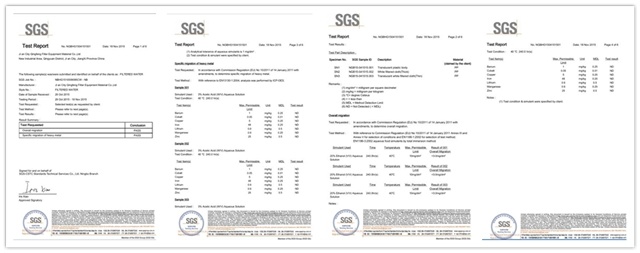

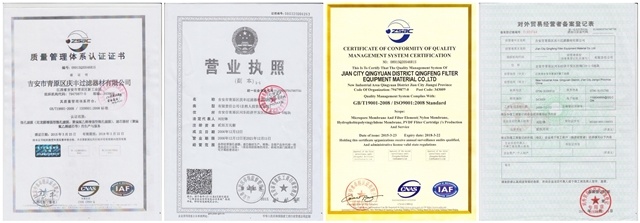

Certificate: SGS and ISO9001

Product Description


                                                               PTFE Filter Cartridge
Introduction:

The filtration media of  PTFE micropore filter catridge is hydrophobic PTFE membrane, it is constructed of two materials PTEE and PP to meet high standards of chemical and pharmaceutical industry. The benefit of PTFE Cartridge Filter summary: strong hydrophobicity, high retention rate, super chemical tolerance and thermal stability, good intension, withstand shocks and back pressure. All  PTFE Filter Cartridge have passed 100% integrity accord with FDA and chinese Pharmacopoeia.

Specifications:

Filter medium: hydrophobicity PTFE membrane
Support layer: PP
Filter cage: PP
Pore size: 0.1, 0.2, 0.45, 1 (um)
Length: 5", 10", 20", 30", 40"
Sealing material: Silastic, NBR, EPDM, Viton
Airtight method: thermal bonding technique
Effective filtration area: >=0.64square meter/10"
Diameter: 68mm
Working temperature: ≤65ºC
Max. operating temperature: 90ºC(P≤0.1Mpa)
Max. bear temperature: 140ºC, 0.27Mpa
Max. positive pressure: 0.42Mpa (23ºC)
PH value: 1--14
Sterilizing: temperature: 121ºC  30min
Others: special requirement of diameter and end caps can be customized

Typical Applications:
Chemical industry; Gas filtration etc.


Materials of Construction
Membrane PTFE
Support and Drainage PP
Core, Cage PP
End Caps DOE, SOE (code2, code3, code7, code8)
O-rings/Gasket Silicone/EPDM/Viton/TEV
Sealing Technology Thermal Bonding, No Adhesives
Dimensions
Diameter Φ68
Length 5 inch, 10 inch, 20 inch, 30 inch, 40 inch
Filtration Area, ft 2
≥ 6.4 per 10-inch element
Pore Size, μm
0.01 (for gas),0.1, 0.2, 0.45, 1 (um)
Maximum Differential Pressure
Forward: 4.2 bar @ 23 C
Nitrogen Flow Rate & Pressure Drop , per 10-inch cartridge
≥ 60 m 3 /h at 0.1 bar with 0 bar outlet pressure
≥ 120 m 3 /h at 0.1 bar with 2 bar outlet pressure
Integrity Test - at 23 C
Bubble point ≥ 1100 mbar with 60/40% IPA/water
HydroCorr (water intrusion test) ≤ 0.75mL/min per 10-inch cartridge with water at 2620mbar
