Hydrophobic PTFE Membrane Media Capsule Filter
|Model No.: ||PTFE Capsule filter |
|Min. Order: ||25 Piece/Pieces|
|Payment Type: ||L/C,T/T,D/P,Paypal,Western Union|
|Packaging: ||Carton Packing|
|Delivery Time: ||10-15 Days|
|Place of Origin: ||china|
|Supply Ability: ||100000PCS/Year|

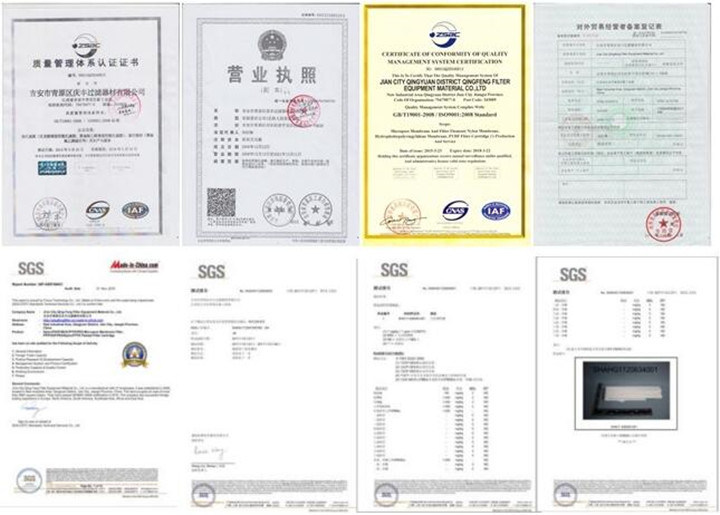

|Certificate: ||SGS and ISO9001|
Kinds of Micropore Filter Membrane materials can be chosen by the customer's requirements. Made up of polypropylene cage and pleated filter membrane insider by thermal bonding, good integrality, free of surfactants and adhesives.
Disposable Capsule Filters Main Characteristics:
Incorporate the full range of filter medias (PP,PS,PF,PV),with the housing out, can be used directly; Ideal for small batch prefiltration and final filtration of liquid or gas in laboratory. Different kinds of connections are for options. Easy to install and convenient to use
Disposable Capsule Filters
PTFE Capsule filter Typical Applications:
PTFE Capsule filter is with PTFE filter membrane, high flow rate, can choose filter media with glass fiber to prolong the service life, suitable for large sample volume and something difficult to filter. Widely used in the filtration of pharmaceutical, food and beverage and the filtration of small injection, tissue cultural media and liquid filtration.
Available Micron Rating(µm):
PTFE: 0.10 0.20 0.45 1.0
Materials of Construction:
Filter Media:PTFE Membrane
Inner Core: Polypropylene
Outer Core: Polypropylene
Available Length: 2.5" 5"
Effective Filtration Area: 2.5" ≥0.14m3 5" ≥0.28m3
Available Connections: 1/8" NPT; 1/4" NPT; 1/4" CNPT; 1/2" NPT; 9/16" hose barb; 1.5" sanitary flange
Normal Operating Temperature: ≤55ºC
Max. Operating Temperature: 85ºC(△P≤0.10Mpa)
Max. Differential Pressure: Normal Flow direction:4.2 bar at 25ºC
Reverse Flow direction: 2.1 bar at 25ºC
Endotoxin: <0.50 EU/ml
QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
