Model No.: PP Pleated Filter Cartridges
Min. Order: 25 Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal,Western Union
Transportation: Ocean,Land,Air
Productivity: 100000PCS/Year
Packaging: Carton Packing
Delivery Time: 10-15 Days
Place of Origin: china
Brand: QingFeng,OEM
Supply Ability: 100000PCS/Year
Certificate: SGS and ISO9001

Product Description

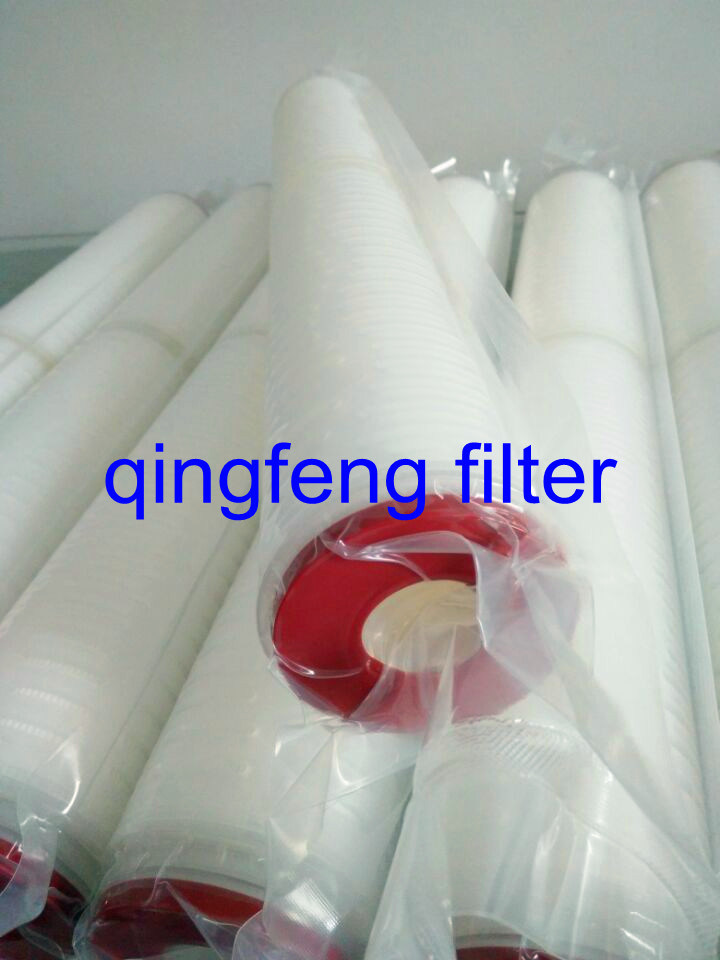

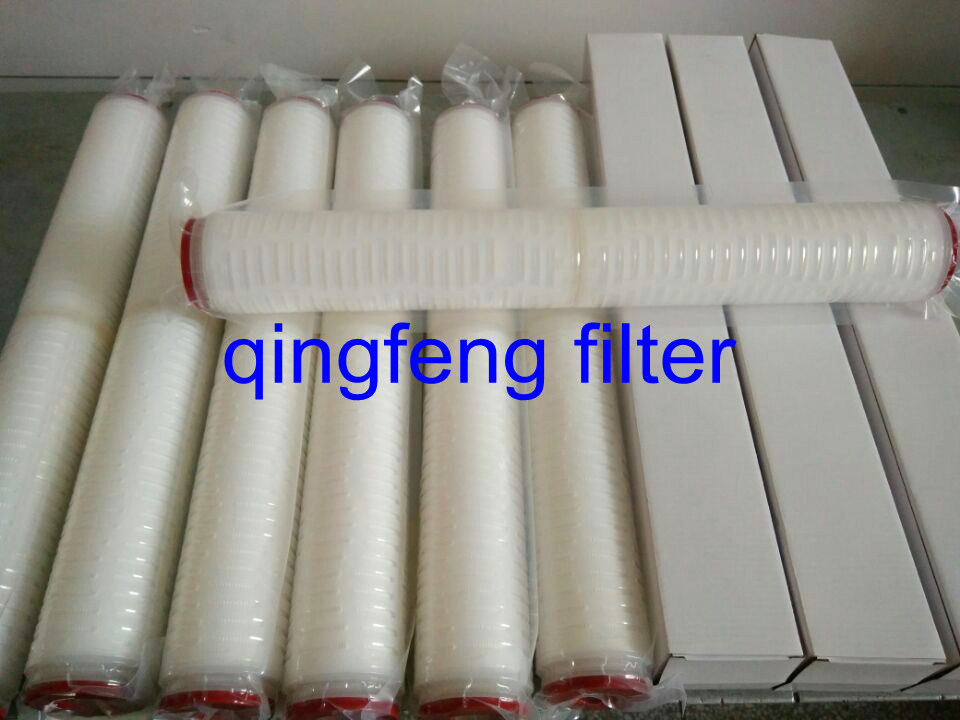

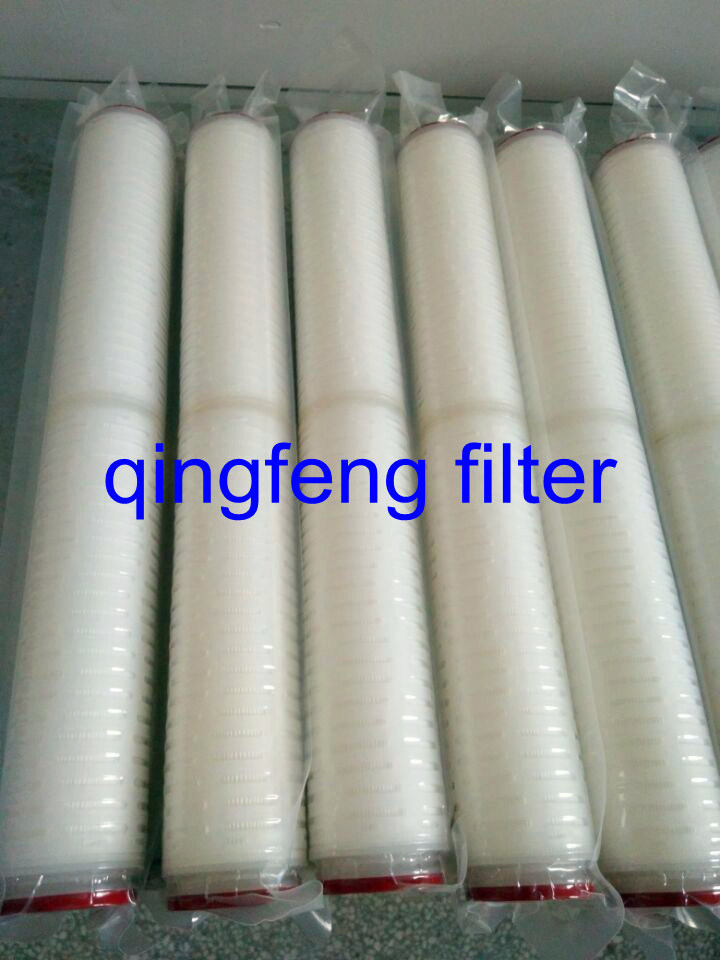

                                                                PP Pleated Filter Cartridge

Main Characteristics:

The filtration media of PP micropore filter cartridge is superfine PP firbe membrane.it is a fixed and depth filter  cartridge with a wide range of pore size from 0.1um to 60um.The material comply with FDA related requirements.It is the first choice of pre-filtration due to its unique low differential pressure .high flow rate and long service life feature.The structure  of PP has stable performance and wide chemical compatibility.


Typical Applications:

Medical industry:filtration for medical liquid,cell debris,biologicals.

Chemical industry:filtration for organic solvent ,chemical reagent,eletroplate liquid,ink.

Food industry:drinking water ,mineral water ,beverage,beer,wine


Specifications:

Filter media Nylon/PES/PVDF/PTFE Membrane
Support Layer Polypropylene
Inner Core Polypropylene
Outer Core Polypropylene/Stainless Steel
Outer Diameter 68mm
Inner Diameter 33mm
Effective Filtration Area ≥0.65m2
Normal Operating Temperature ≤65ºC
Max. Operating Temperature 90ºC(△P≤0.10Mpa)
Max. Differential Pressure Normal Flow direction:4.2 bar at 25ºC, Reverse Flow direction: 2.1 bar at 25ºC
PH Value compatibility 1-14
Sterilizing temperature Steam Sterilization for 30 minutes at 140±2ºC
Endotoxin <0.25 EU/ml
Extractable 0.03g/10"
Remark: special requirement of diameter and end caps can be customized
Complete test  (minimum bubble point)(25ºC;95% isopropanol):
0.2um ≥0.105Mpa
0.45um ≥0.075Mpa
Pleated Filter Cartridges
Filter Paper Uses
membrane filter cartridge
membrane filter cartridge
Pleated Filter Cartridges
Filter Paper Uses
ABOUT US:

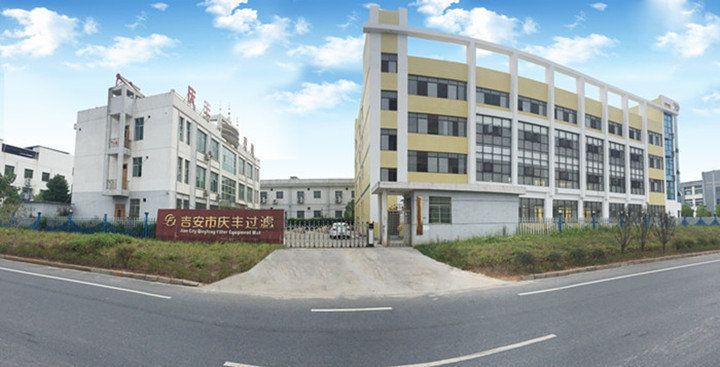

    QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an  Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

    Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane.  The products and services we offer will provide world class quality.
